This is SEEBURG 3WA WALLBOX-200 WALLBOX that was cleaned and restored in working condition. It was thoroughly washed with hot water and degreasing detergent.
There is no nicotine residue. The unit has been tested and makes all proper 200 selections. This unit is ready to be connected to a jukebox with the proper stepper or can be connected to an ipod or any home stereo with the Data Sync Wallbox Player System.

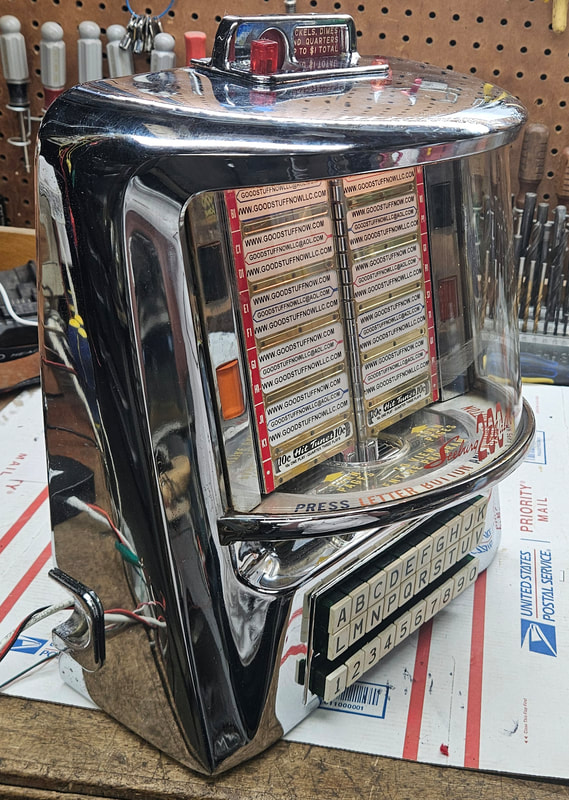

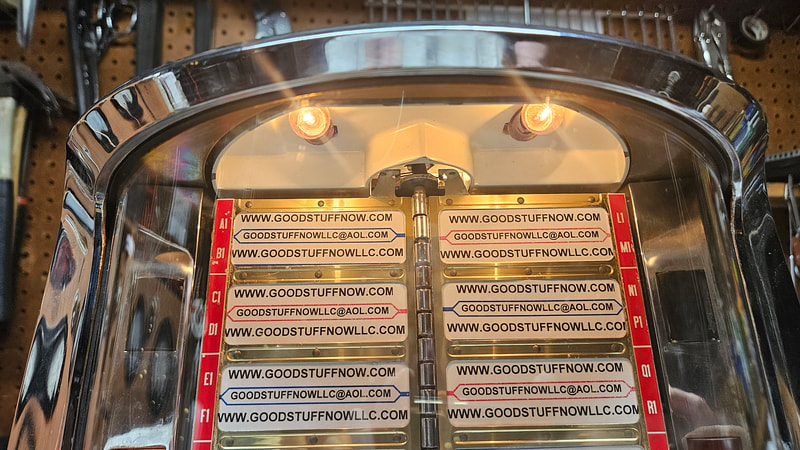

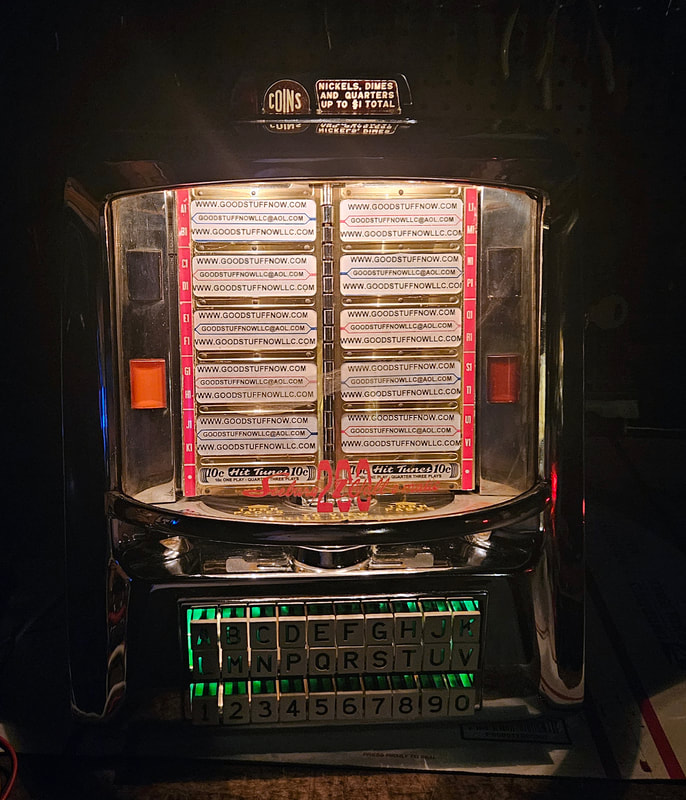

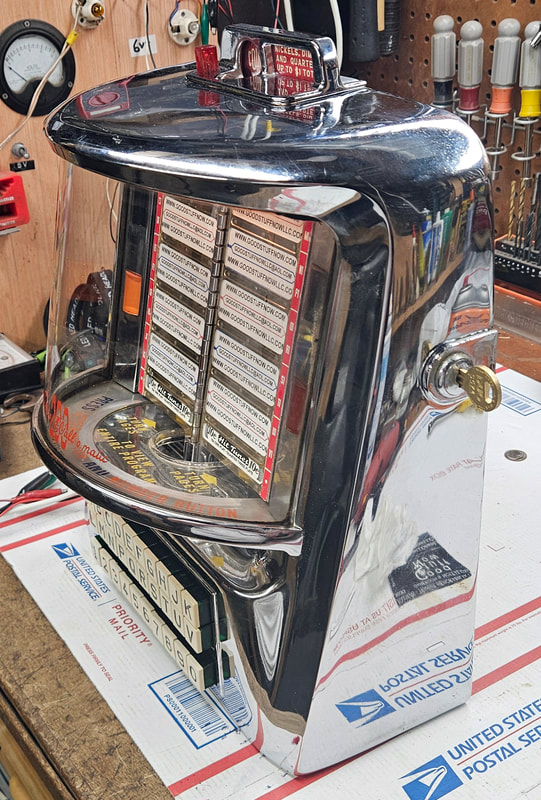

There are more than a dozen variations of the Seeburg model 3WA wallbox. This one was the deluxe model that includes CHROME pilasters, CHROME top glass holder and coin indication light shields. The cover is ORIGINAL CHROME in EXCELLENT condition for its age. I would rate it as A- or Grade 1 minus.
Dome is ORIGINAL GLASS.

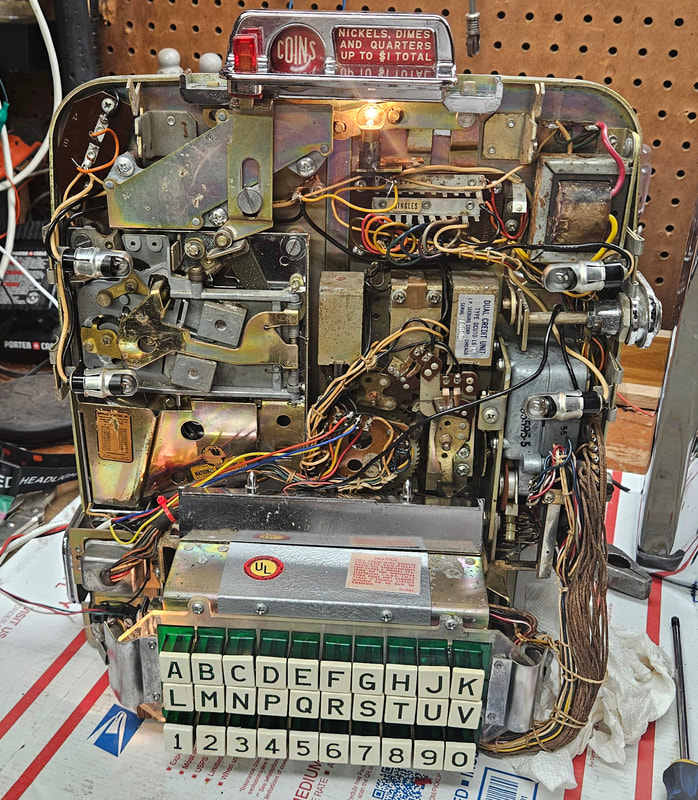

This wallbox is presently set up with the DCU10L6 credit unit with plug. All selections are on Single Play. EP selections can be enabled for dual pricing.
SINGLE SELECTIONS are set on ONE PLAY for TWO NICKELS or ONE DIME (one credit), THREE PLAYS for ONE QUARTER (three credits).
EP SELECTIONS are set on ONE PLAY for 15 cents (Dimes or Nickels) and TWO PLAYS for a QUARTER. It is very easy to price any set of pages for SINGLE or EP pricing (1-0). This is the factory setting for the DCU10 dual credit unit.

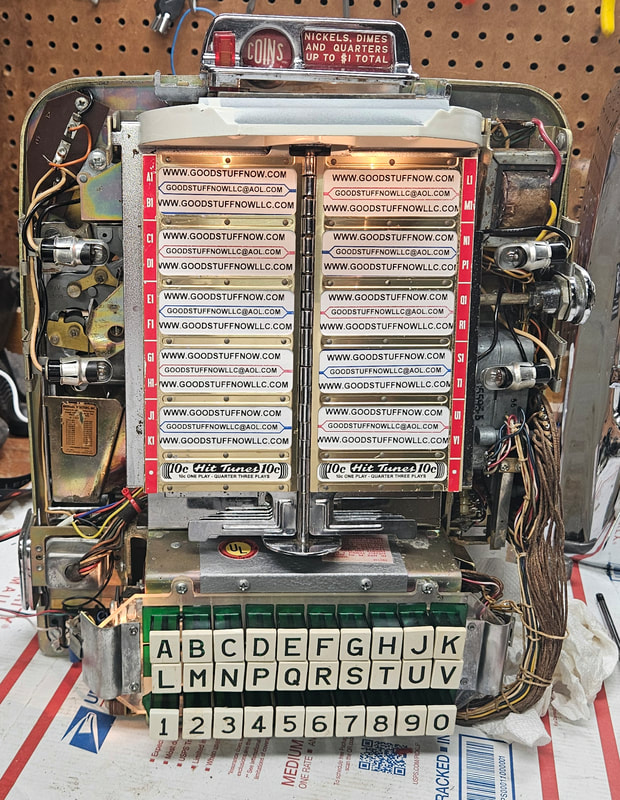

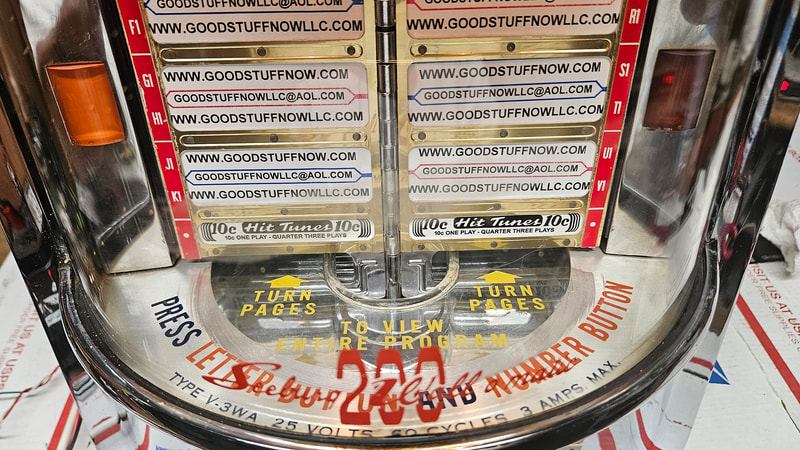

The coin credit indicators at each side of the program holder will indicate “FIVE CENTS DEPOSITED, ANOTHER COIN REQUIRED” (lower right in red), MAKE TEN CENT SELECTION ONLY (lower left in orange) and MAKE ANY SELECTION (Upper left and right in green).

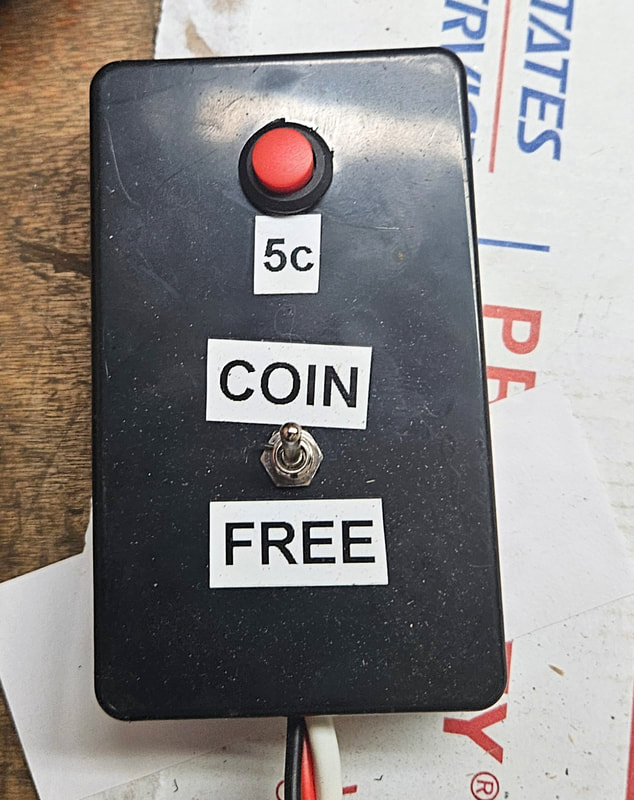

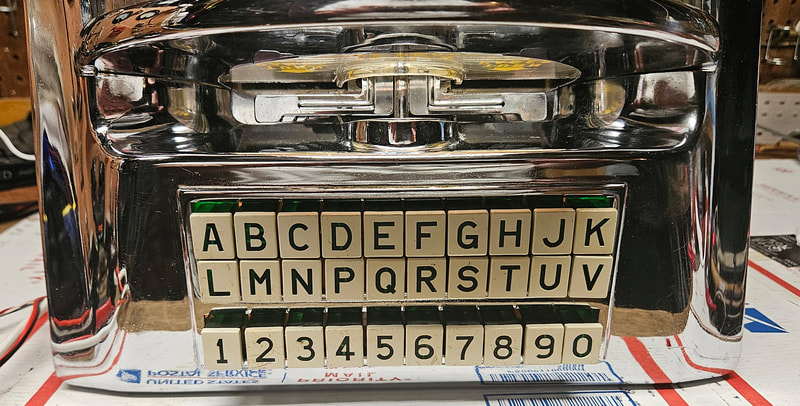

This wallbox has a "free play" toggle switch. Turn on and the wallbox will continue to be on free play (simply press a letter and a number) until switched off. When switching off the free play toggle do so immediately after making a selection so that the wallbox returns to the "home" (buttons don’t latch) position and not the "credit position" (buttons latch). It also has a 5c button, with one press equivalent of dropping a nickel.
Any questions please ask before bidding as there are NO returns on this item.
We have over 40 years experience working with Jukeboxes and Wallboxes, specializing in Seeburg and Wurlitzer Jukeboxes and Wallboxes. We have many unrestored make and model wallboxes and can customize one to fit your budget and needs.
Any questions please ask before purchasing as there are NO returns on this item. This item is owned by GoodStuffNowLLC
ADDITIONAL INFORMATION ON DUAL PRICING UNITS

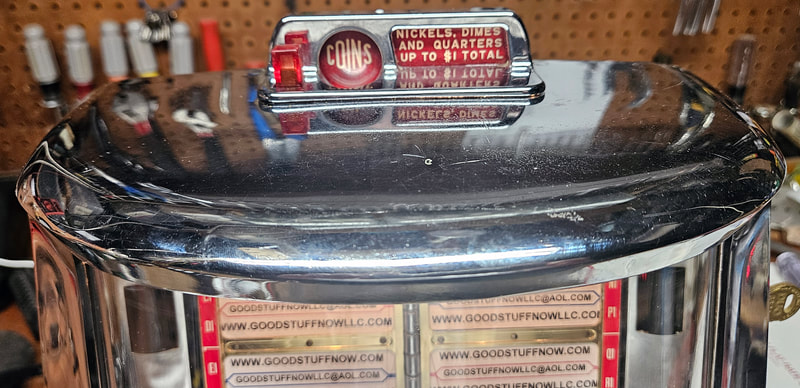

Coins are deposited in a single entry coin chute and pass through a 5-10-25 cent slug rejector and then through the coin switches into the cash box. A nickel will register one credit, a dime two credits and a quarter six credits. The coin credit units can accumulate up to 24 credits. The pricing on these units was set at the factory and could not be changed without new parts or "jury rigging".
DCU 10 units would charge SINGLE SELECTIONS at 10 cents each and 3 for a Quarter; EP SELECTIONS at 15 cents each and 2 for a Quarter.
DCU15 units would charge SINGLE SELECTIONS at 5 cents each and Six for a Quarter; EP SELECTIONS at 10 cents each and 3 for a Quarter.
Information panels (coin credit indicators) at each side of the program holder on the pilasters illuminate to indicate when coins were deposited. The lower right indicate "5 CENTS DEPOSITED, ANOTHER COIN REQUIRED in red". The lower left would indicate "MAKE TEN CENT SELECTION ONLY in orange" and the two upper would read "MAKE ANY SELECTION in green". There were variations of these depending on the pricing.
The DPU and DCU credit units (D meant Dual Pricing) were designed to allow for dual pricing. Any of the twenty selections for a given "number" (A1 thru V1, A2 thru V2 etc) could be set to either "single" or "ep" (extended play) pricing. Single pricing removed two credits and EP pricing removed three credits each time a selection was made. The titlestrip pages were designed to display groups by numbers (A1 thru V1, A2 thru V2 etc).
