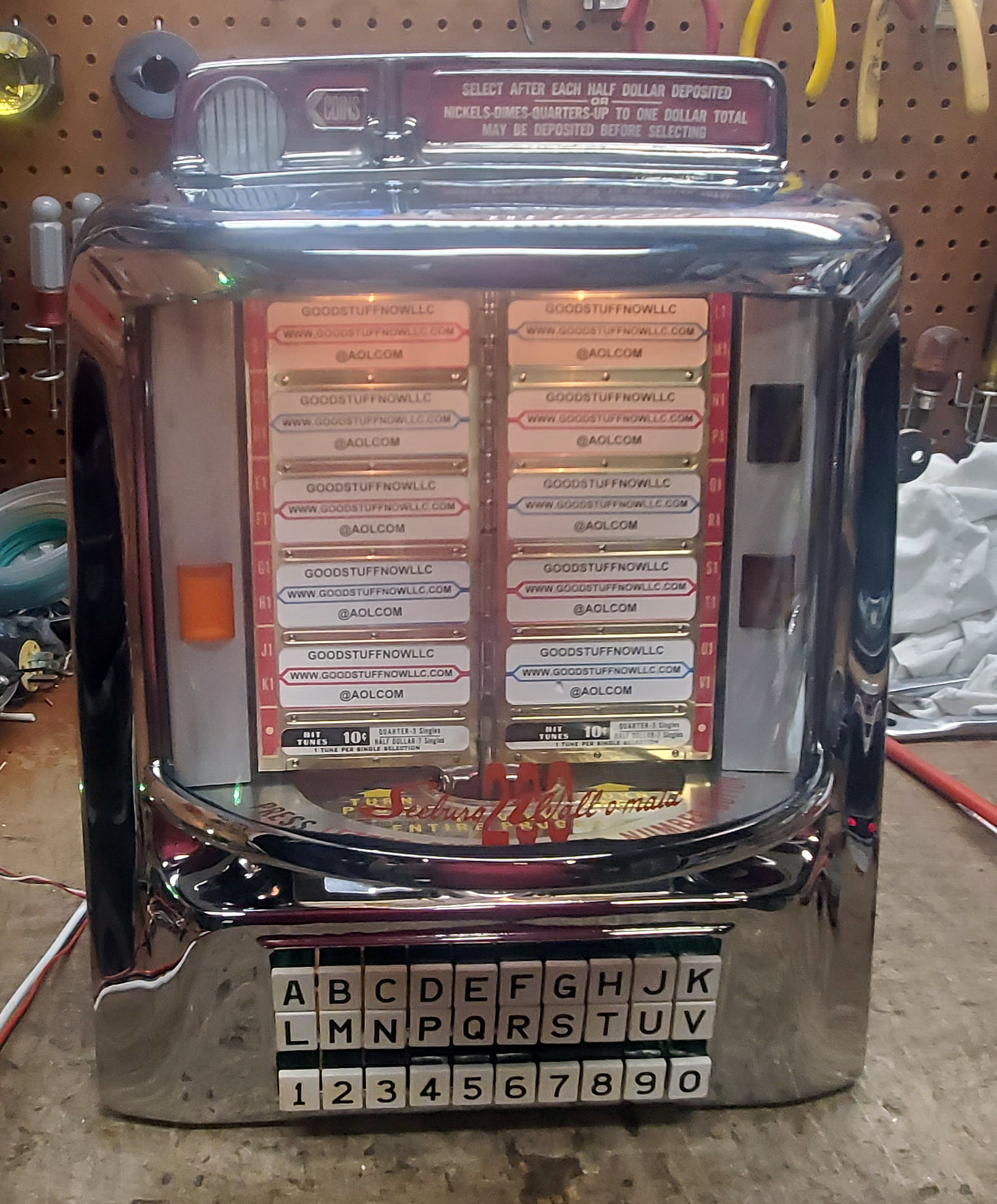

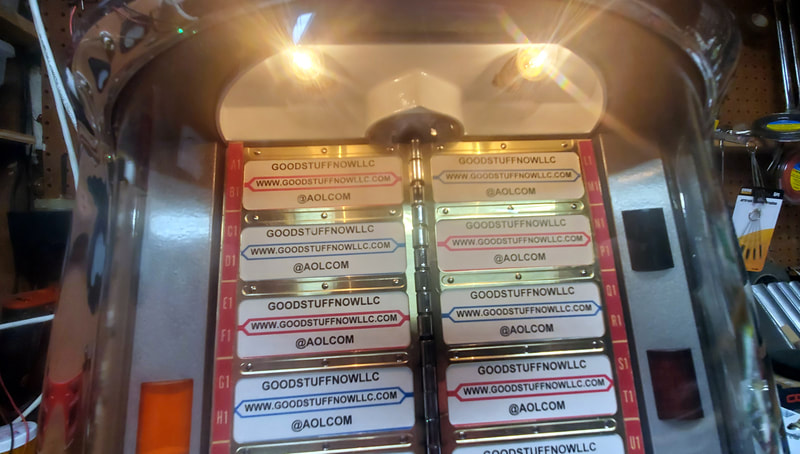

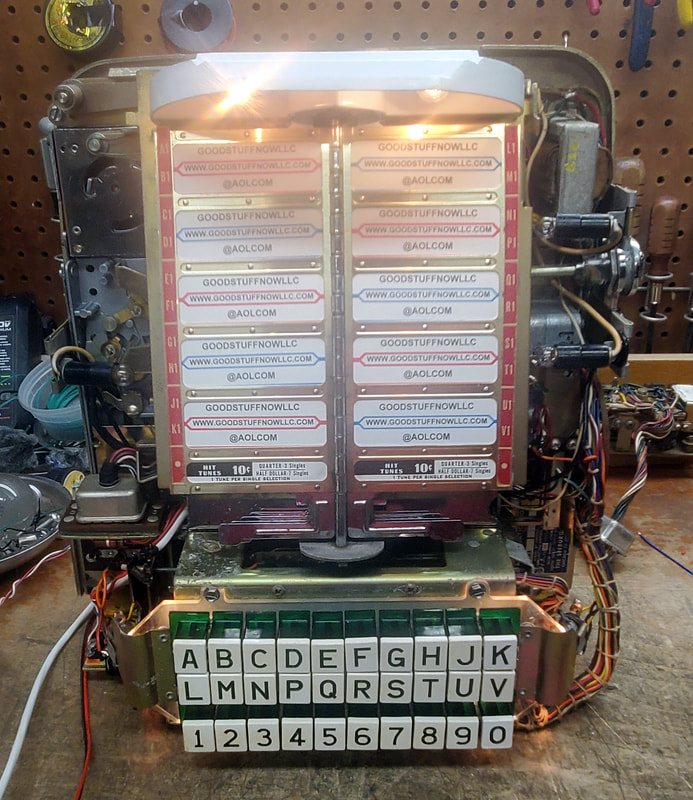

This is a Seeburg Jukebox Wallbox, Model HD-3WA-U

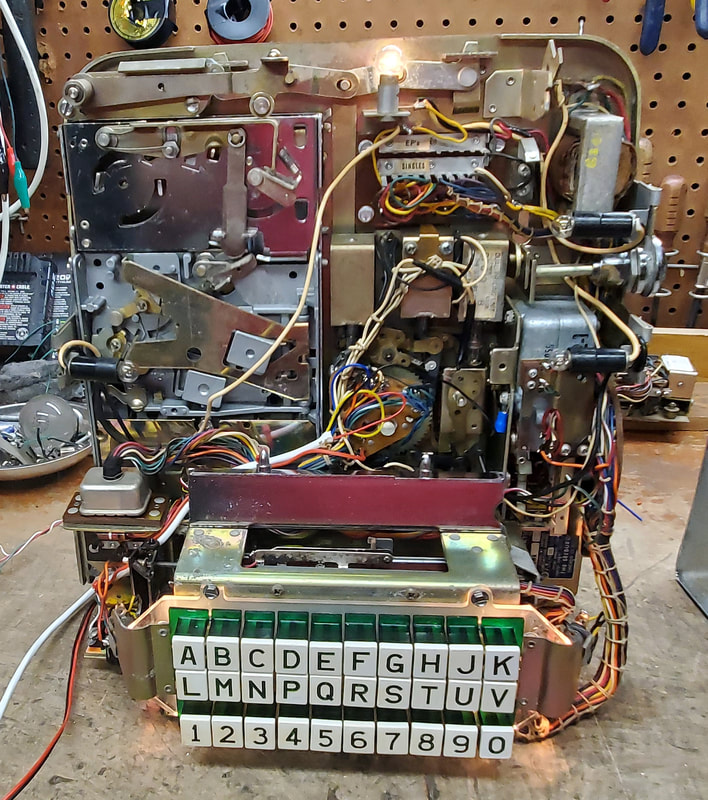

It was thoroughly washed with hot water and degreasing detergent. There is no nicotine residue. The unit was tested and makes all proper 200 selections. This unit is ready to be connected to a jukebox with the proper stepper or can be connected to an ipod or any home stereo with the Data Sync Wallbox Player System.

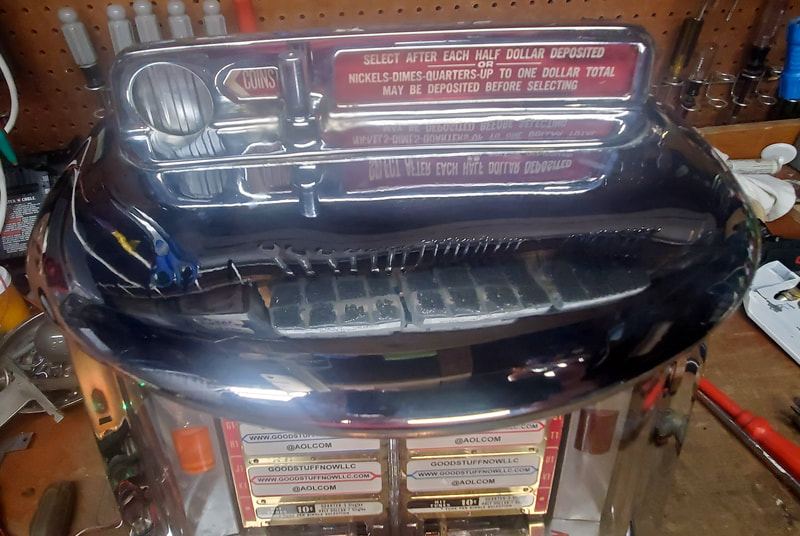

100% Complete with all the coin equipment (slug rejector and coin tray). this unit is set on 1 credit for a Nickel, 2 credits for a Dime, and 6 credits for a Quarter and 14 credits for a HALF DOLLAR. This will allow either two nickels or a dime for a single selection (two credits) and a Quarter for three single selections.
When dual pricing is enabled, the EP pricing is set at 15 cents for an "EP" selection or a quarter for two "EP" selections. A Half Dollar will register credits AFTER the first selection is made, totaling 14 credits (minus the credits of the current selection). Selections must be made after depositing each half dollar.
Additionally this comes with a wired momentary "free play" that puts on a single credit (equivalent of a nickel) each time it is pressed. The accumulator will hold up to twelve credits (four quarters) at a time. Additionally there is a free play toggle switch when turned on will allow selections to be made (either Single or EP) until it is turned off, then it will require coins.
Dual Credit Unit DPU10-CODE B

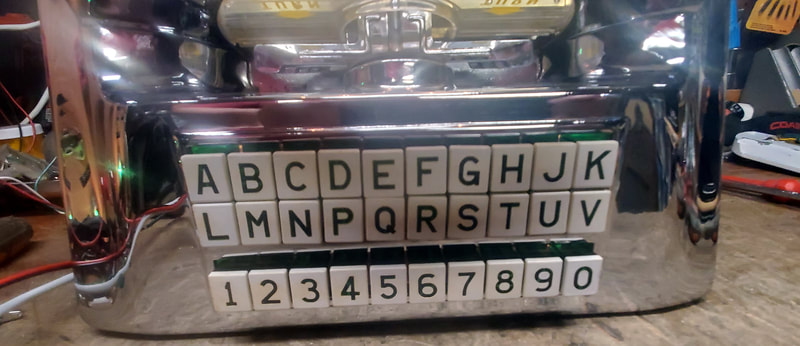

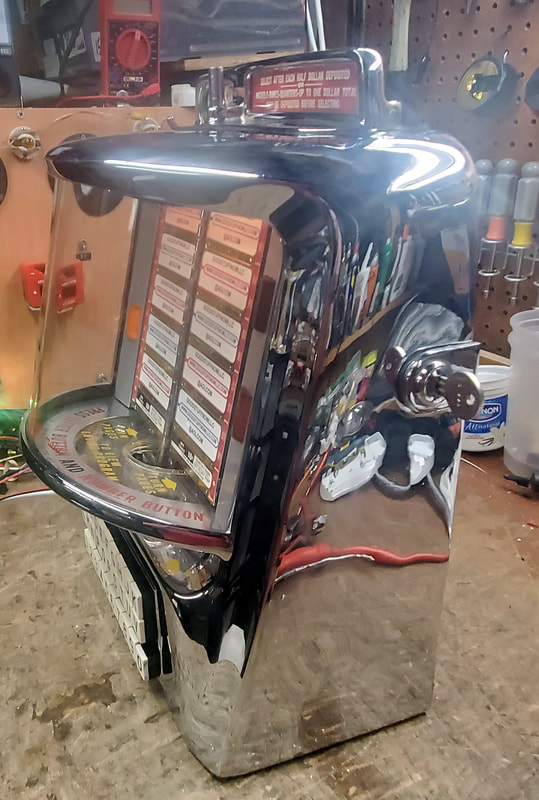

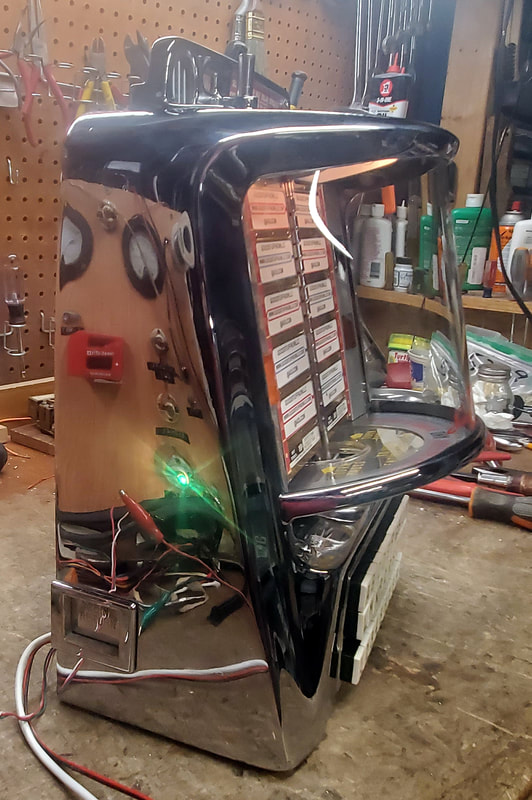

The cover has been re-chromed and is in very good condition. It has original glass, not plexiglass. The buttons are original and were buffed using a plastic rouge on a buffing wheel. This unit is over a half century old!
